Box
InterconnectIO Box
Features

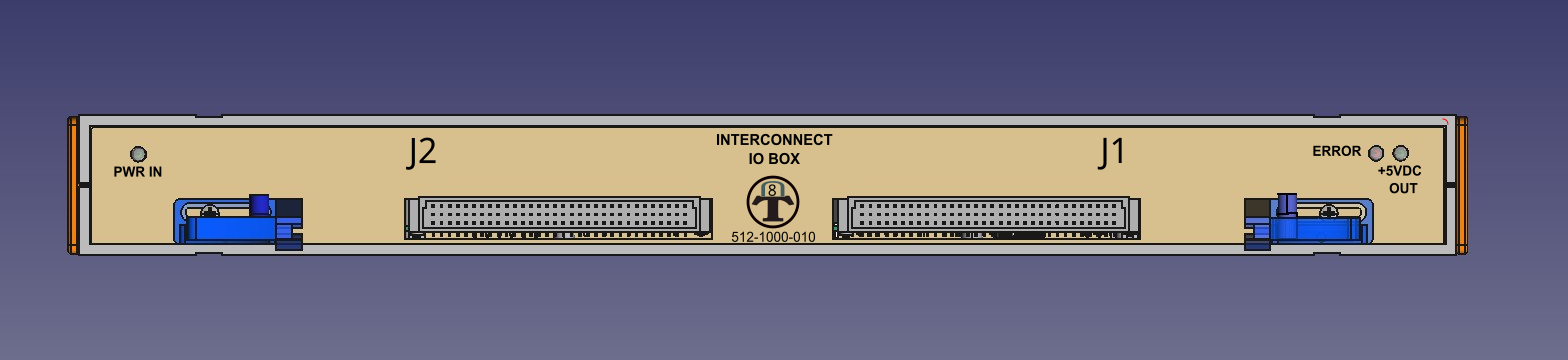

• The front panel is laser-cut, and the text was added using Inkscape.
• The logo, “Dlock8 Test,” was added to enhance the professional appearance.

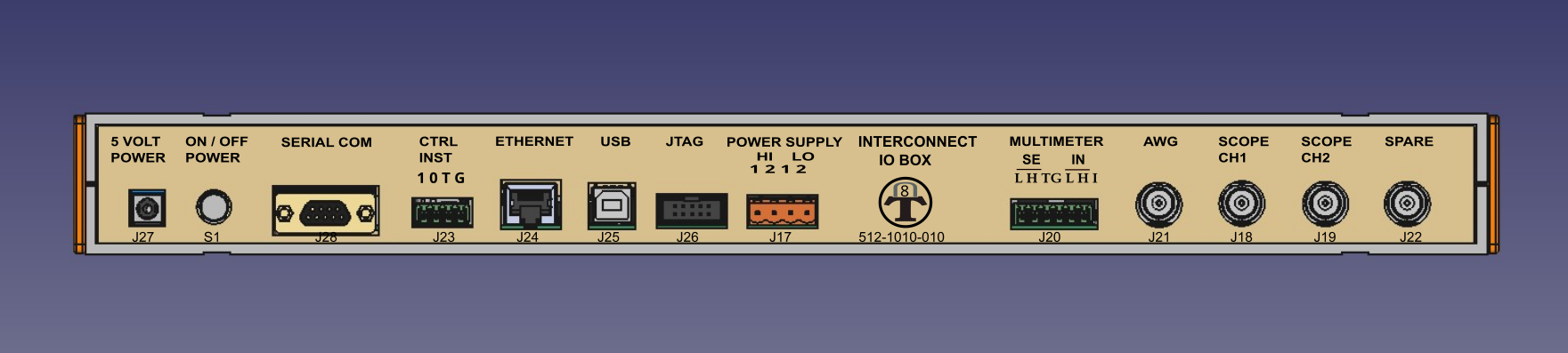

• The back panel is laser-cut, and the text was added using Inkscape.
• Maximum information has been added to the panel to ensure connections can be made without errors.

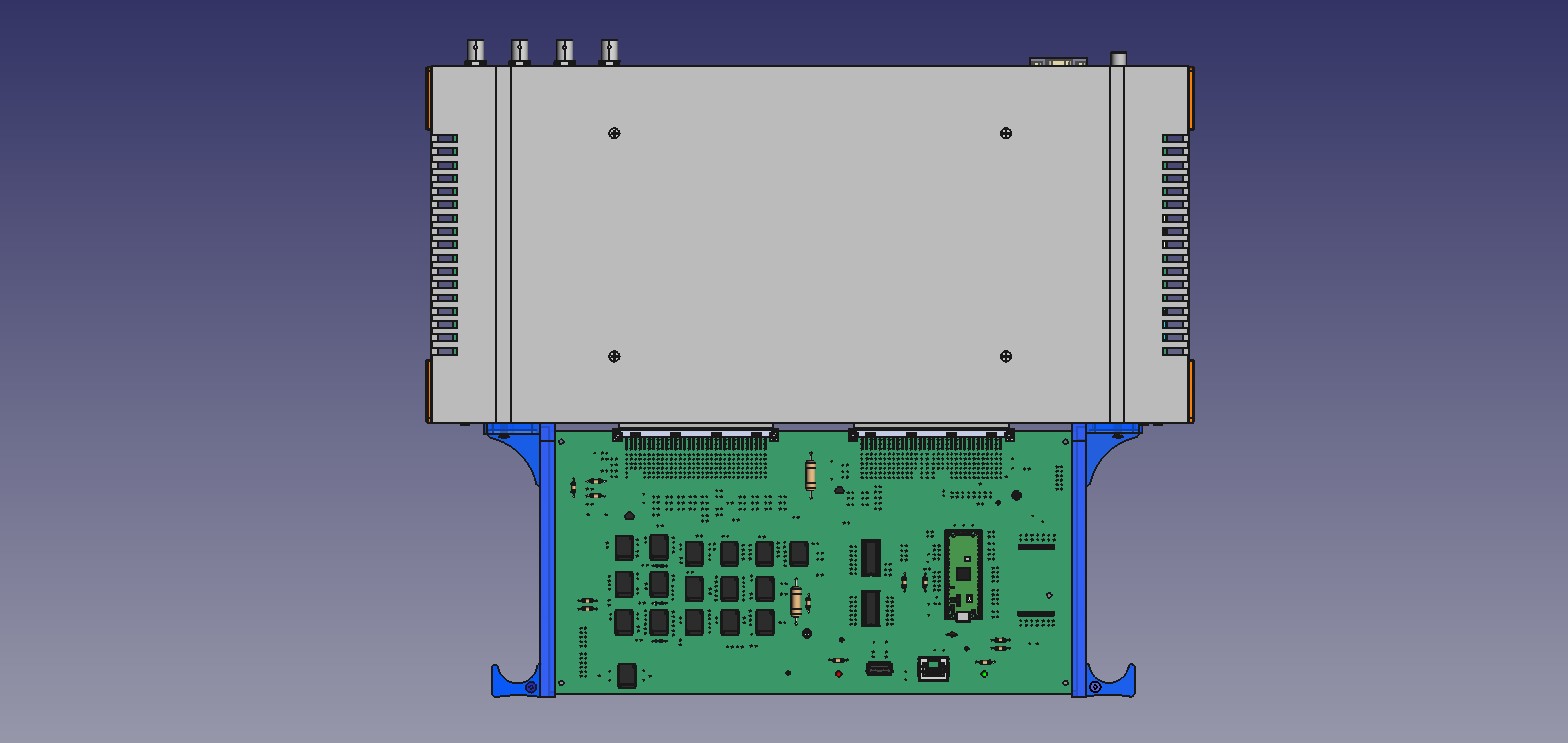

• The Selftest board can be easily inserted into the InterconnectIO Box using the guided rails.

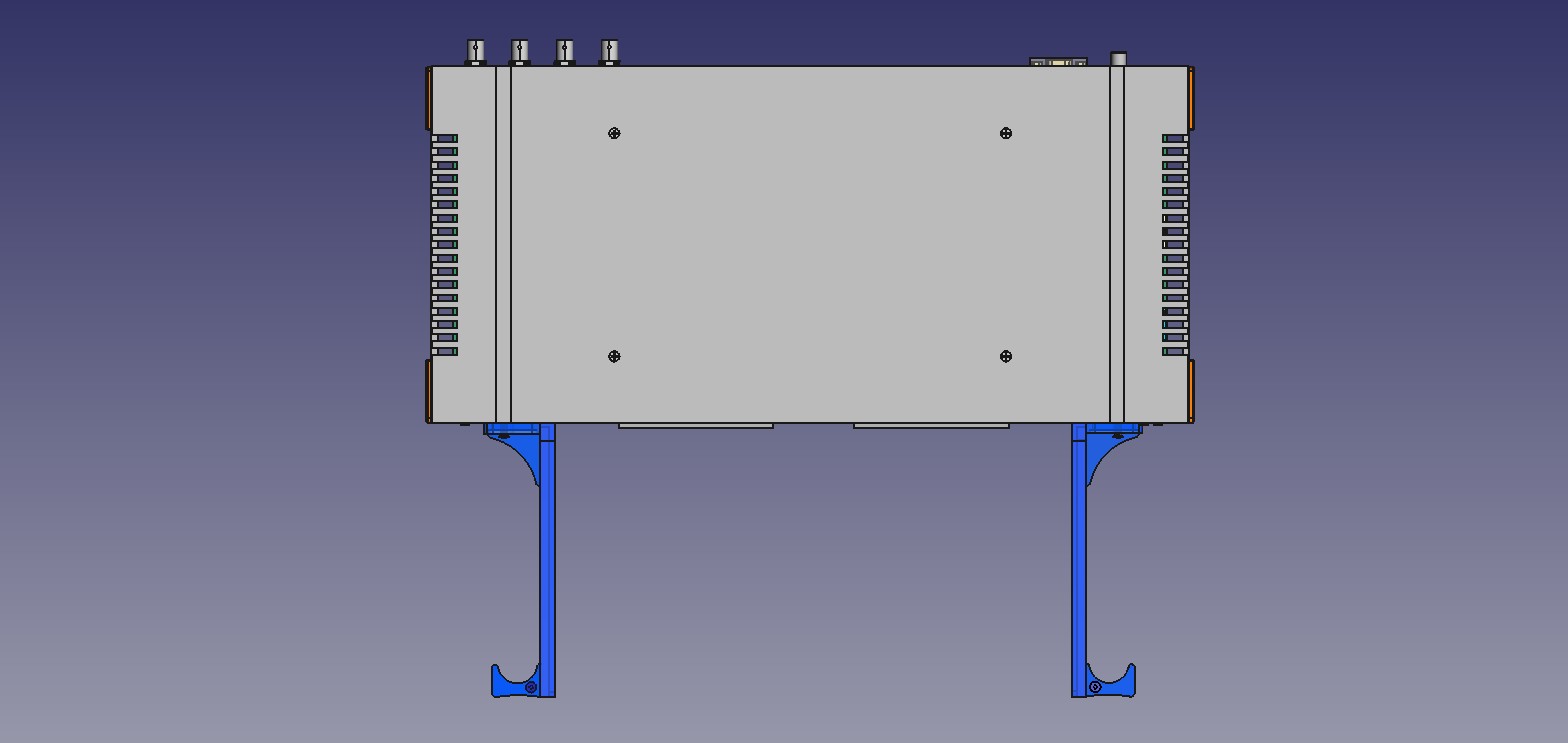

• The position of the guided rails is adjustable horizontally to accommodate shorter or larger boards.
• The Selftest board can be used as a template to create custom boards for testing new Units Under Test (UUTs)..

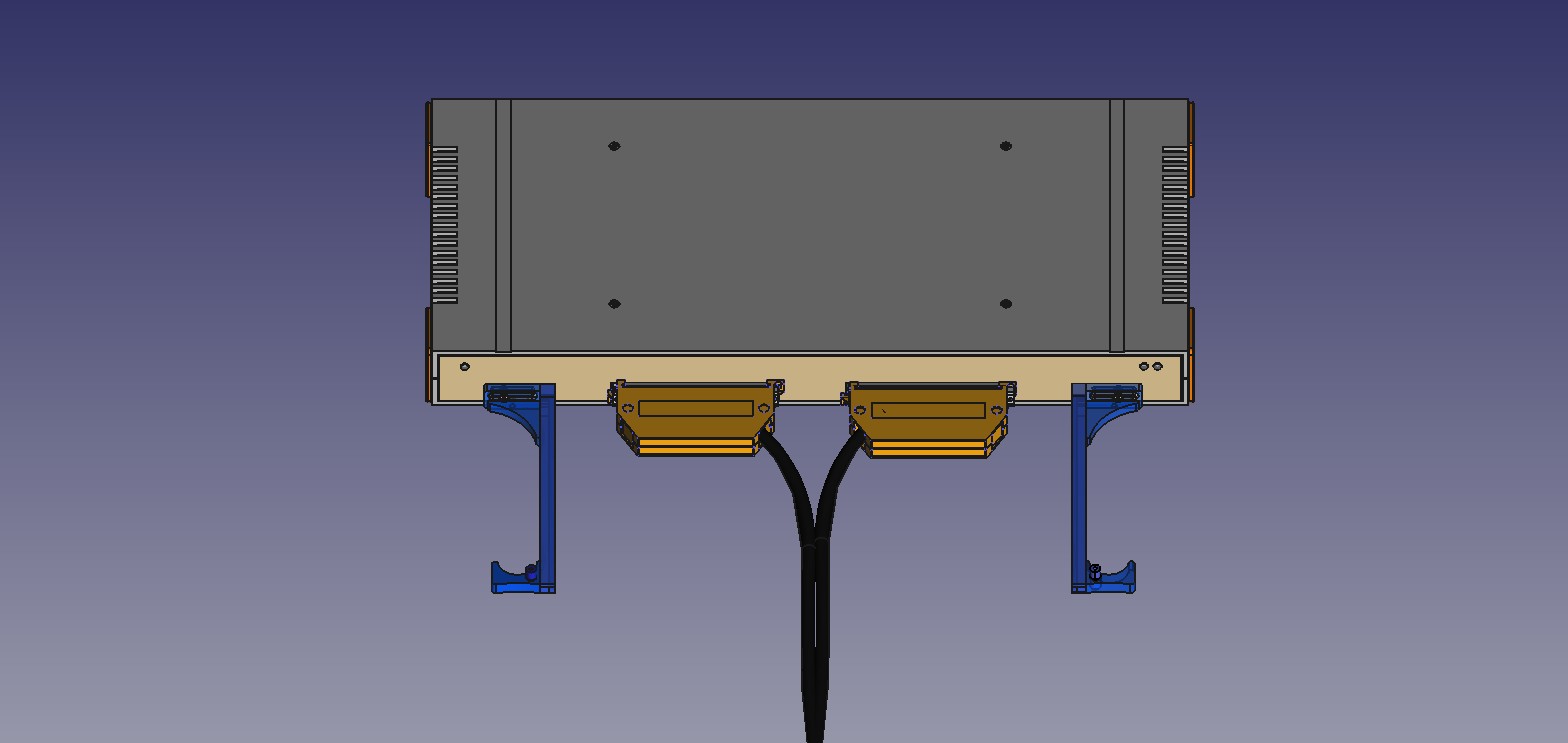

• A custom cable harness could be connected to the InterconnectIO Box.
• A plan has been made to design a custom case for the connector, which can be produced using 3D printing.

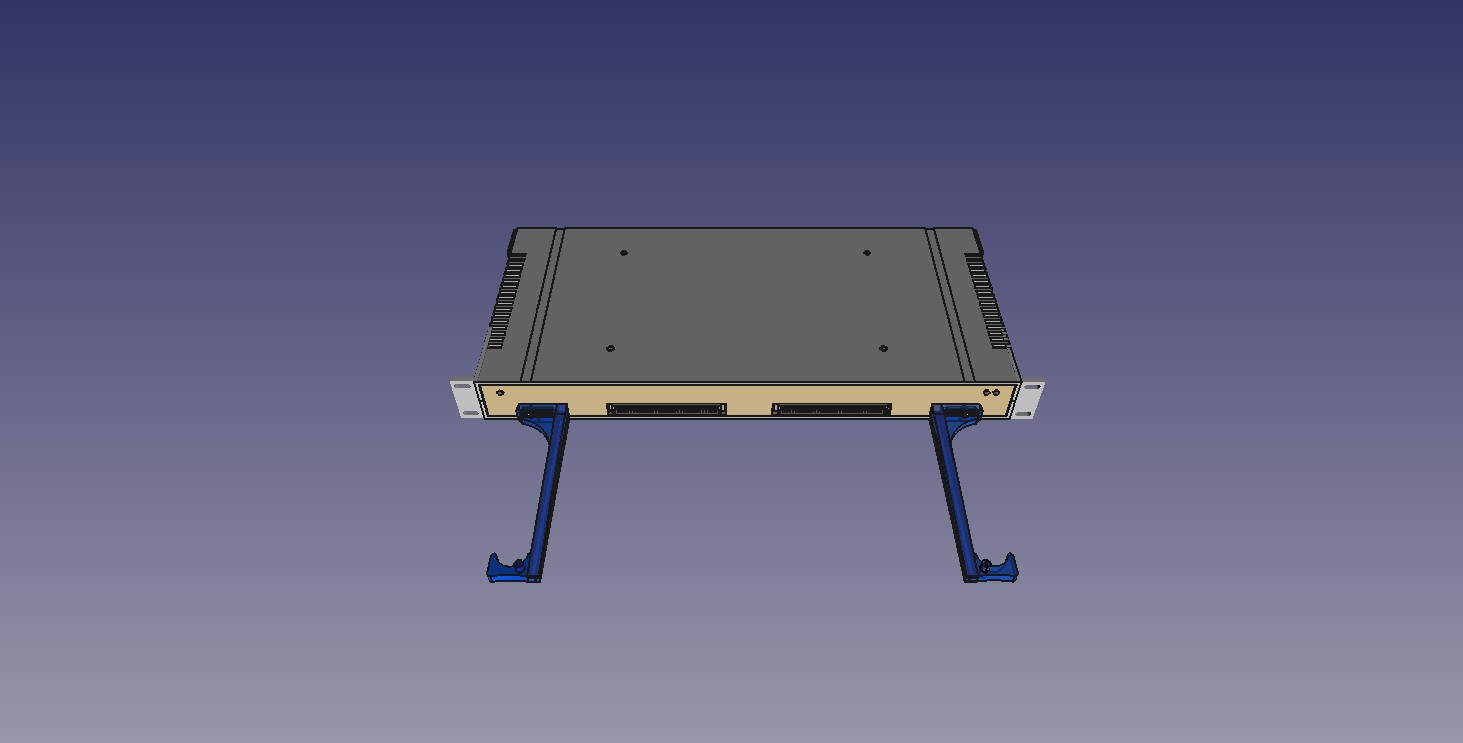

• Rackmount brackets are included with the InterconnectIO Box, making it compatible with a 19-inch rackmount cabinet.
