InterconnectIO Box Project

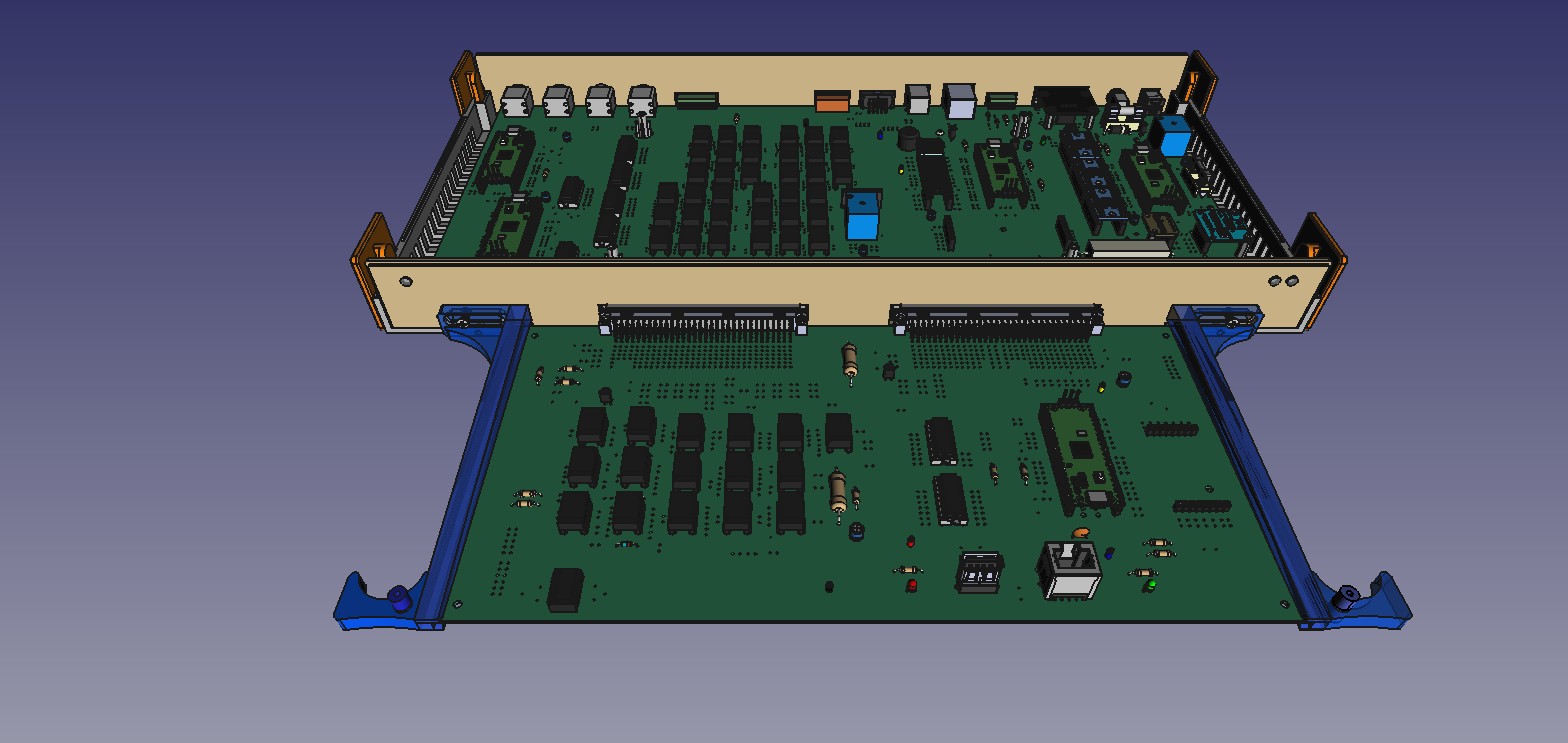

Complete Interconnect IO Box and attached Selftest board of the First TestStation

Features

• The InterconnectIO board is mounted in a low-cost molded ABS rackmount box (rackmount bracket not shown in the image).
• The front and back panels are laser-cut from plywood.
• Custom-designed guide rails (3d printed) are included to help the operator easily insert and remove the board, featuring push and pull handles on top of the guide rails.
• The project is powered by an external 5V power pack
